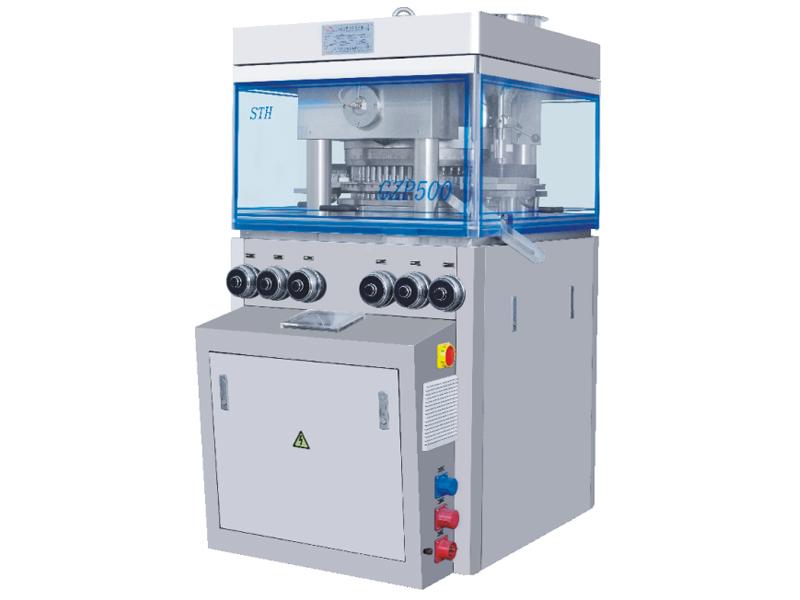

High Speed Rotary Tablet Press GZP500
Our high speed rotary tableting press GZP-16/23/30 has the following unique features.
- It monitors the pressure of each applied punch and displays this data on the touch screen.
- Two chutes are applied. Any defective tablets will be rejected from one chute.
- This high speed rotary tableting press employs a hydraulic system to drive the pre-press wheel and the main press wheel. The hydraulic system also serves as a buffer and protector in case the pressure is too high.
Specification:
| Model | GZP(K)-35 | GZP(K)-43 | GZP(K)-51 | GZP(K)-55 | GZP(K)-57 |
| Number of Stations | 35 | 43 | 51 | 55 | 57 |
| Tooling Type | D | B | ZP | BB | BBS |
| Main Compression Force (kN) | 100 | 100 | 100 | 100 | 100 |
| Pre Compression Force (kN) | 20 | 20 | 20 | 20 | 20 |
| Maximum Tablet Diameter (mm) | 25 | 18 | 13 | 13 | 11 |
| Depth of Fill (mm) | 20 | 18 | 15 | 15 | 15 |
| Maximum Tablet Thickness (mm) | 8 | 7 | 6 | 6 | 6 |
| Max. Turret RPM (r/min) | 60 | 60 | 60 | 60 | 60 |
| Max. Output (pcs/h) | 252000 | 309600 | 367200 | 396000 | 410400 |
| Motor Power (kW) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Overall Size (mm) | 1370x1170 x1800 | 1370x1170 x1800 | 1370x1170 x1800 | 1370x1170 x1800 | 1370x1170 x1800 |
| Approx. Net Weight (Kg) | 3200 | 3200 | 3200 | 3200 | 3200 |
